1.Product Introduction

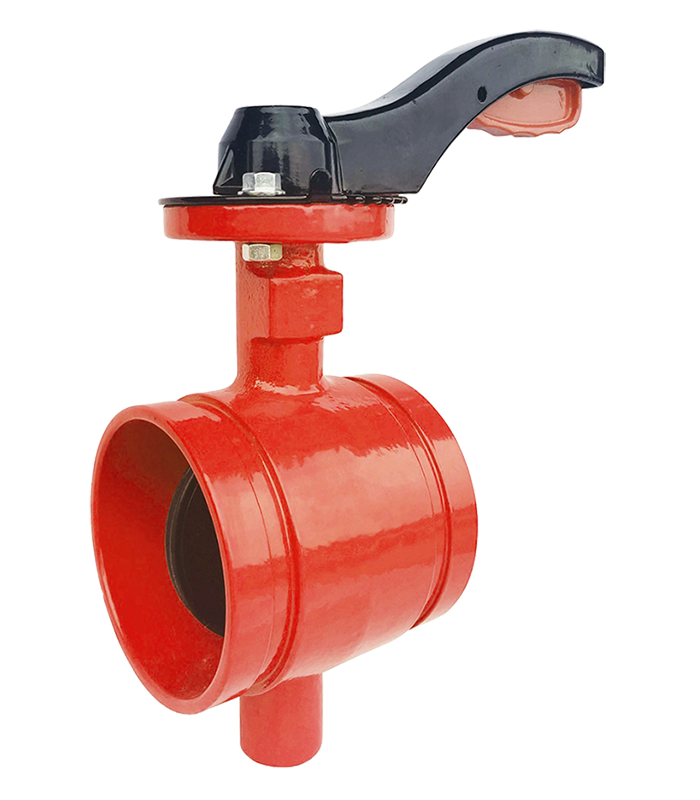

We supply Butterfly Valve(Grooved).The butterfly valves are lever operated valves designed for use in fire protection systems where a visual indication of open valve condition is required. They are used, for example, as system, sectional and pump water control valves.The butterfly valve features a AWWA C606 Groove, grooved end connection for easy installation and accessibility. We are expecting to become your long term partner in China.
2.Product Feature And Application
Outdoor and Indoor Rated
Lever Type

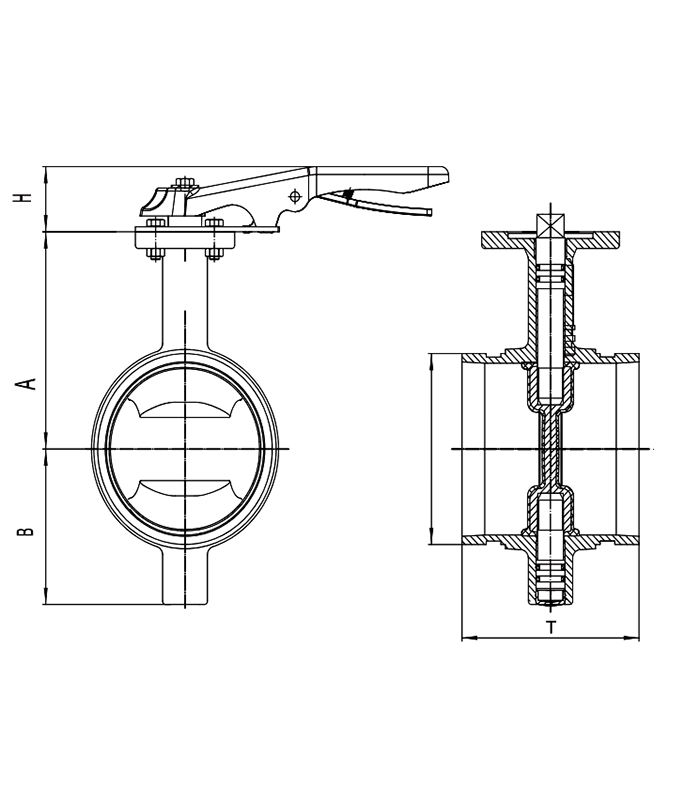

Face to Face Dimensions to MSS SP-67
Grooved Ends Dimensions meet AWWA C606
Working pressure designed to 300PSI
Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard
3.Main Components
| Body | Ductile Iron as A536 65-45-12 | Shaft | SS431 |
| Disc | Ductile Iron +EPDM | Lever | Aluminum or Ductile iron |
