1.Product Introduction

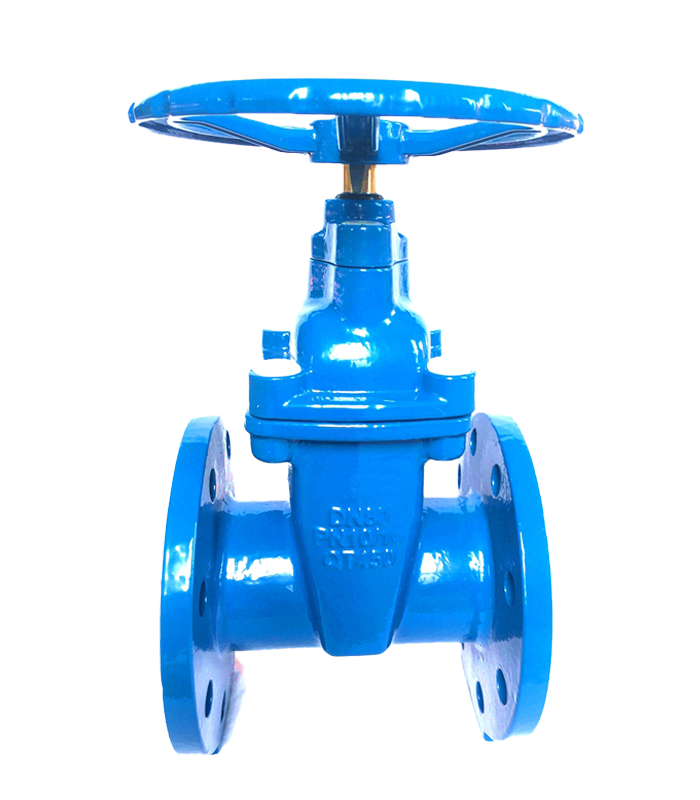

The 300PSI Non Rising Stem Resilient-Seated(NRS) Gate Valve is designed to be the main control valve in an automatic fire sprinkler system.The gate valve features a EN1092-2 flange, flat face end connection for easy installation and accessibility.
2.Product Feature And Application
Meet or exceed PN16
Full Waterway
Adjustable Packing
Ductile Iron Wedge,EPDM Encapsulated

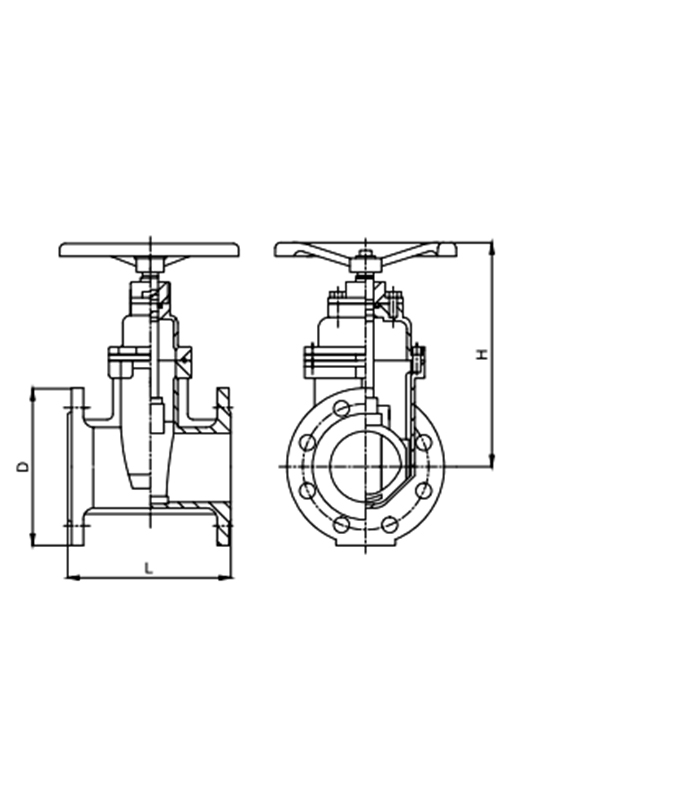

Face to Face Dimensions to BS5163
Flange Drilling to EN1092-2
FM Approved 300PSI Rating
Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard
3.Main Parts
| Body | Ductile iron as A536, 65-45-12 | Bonnet | Ductile iron as A536, 65-45-12 |
| Resilient wedge disc | Ductile iron as A536, 65-45-12 + EPDM | Stem | SS304 / SS316 / SS420 / SS431 |
| Thrust washer | Brass as B124 C37000 | Hand wheel | Ductile iron as A536, 65-45-12 |
