OS&Y Gate Valve Blue


1.Product Introduction
The 300PSI Rising Stem Resilient-Seated(OS&Y) Gate Valve is designed to be the main control valve in an automatic fire sprinkler system or water pipeline.The gate valve features a Class 125 flange, flat face end connection for easy installation and accessibility. Outside screw and yoke (OS&Y) gate valves are recommended when positive shutoff and a quick visual indicator of open/closed position is required. This valve features a pre-grooved stem for tamper switch mounting.

2.Product Feature And Application
Meet or exceed AWWA C515
Full Waterway
Adjustable Packing
Ductile Iron Wedge,EPDM Encapsulated
Face to Face Dimensions to ANSI/ASME B16.10
Flange Drilling to ANSI B16.1,Class 125
FM Approved 300PSI Rating
Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard

3.Main Parts
BodyDuctile iron as A536, 65-45-12BonnetDuctile iron as A536, 65-45-12
Resilient wedge discDuctile iron as A536, 65-45-12 + EPDMStemSS304 / SS316 / SS420 / SS431
Thrust washerDuctile iron as A536, 65-45-12Hand wheelDuctile iron as A536, 65-45-12

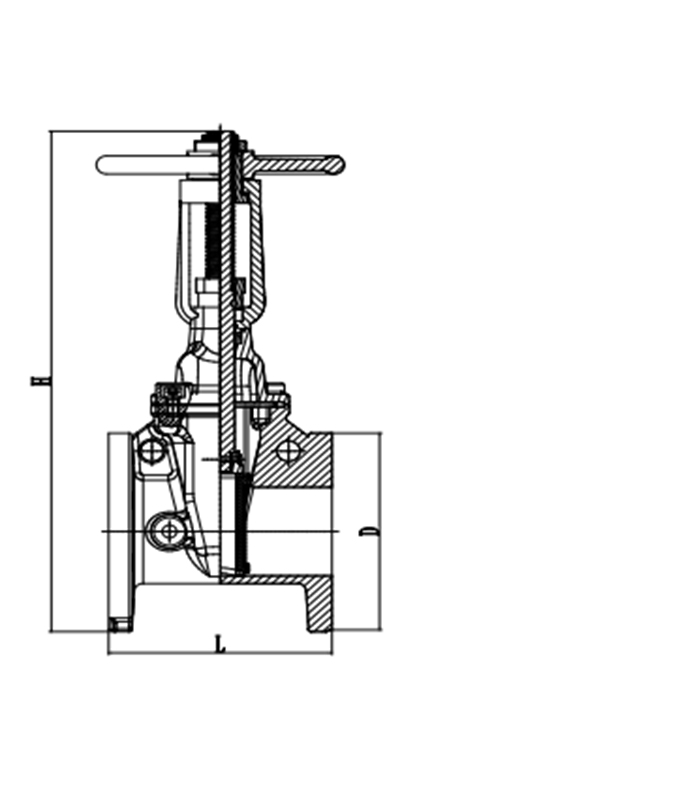

SpecPressureSizeBoltsCode
InchDNPsiLH minH maxD
2503001784204821524 x 3/4"C501050
2 1/2653001904355051784 x 3/4"C501065
3803002035005841914 x 3/4"C501080
41003002295806872298 x 3/4"C501100
61503002677709312798 x 7/8"C501150
820030029293011363438 x 7/8"C501200
102503003301125138340612 x 1"C501250
123003003561295160448312 x 1"C501300
