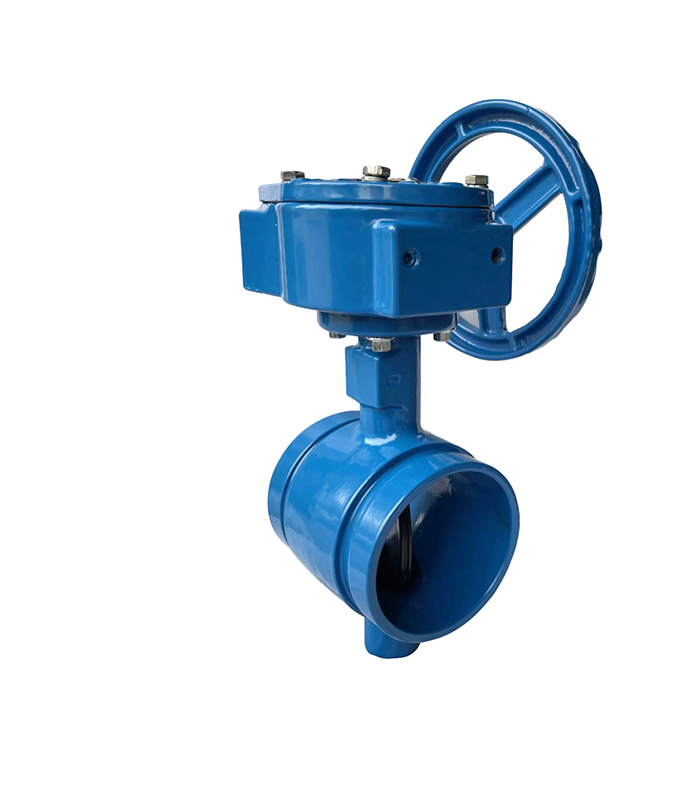

Grooved Butterfly Valve With Gear Box


1.Introduction
We supply Butterfly Valve(Grooved).The butterfly valves are gear operated type valves designed for use in fire protection systems where a visual indication of open valve condition is required. They are used, for example, as system, sectional and pump water control valves.The butterfly valve features a AWWA C606 Groove, grooved end connection for easy installation and accessibility. We are expecting to become your long term partner in China.

2.Product Feature And Application
Outdoor and Indoor Rated
Gear operated
Face to Face Dimensions to MSS SP-67
Grooved Ends Dimensions meet AWWA C606
Working pressure designed to 300PSI
Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard

3.Main Components
BodyDuctile iron as A536, 65-45-12ShaftSS431
DiscDuctile Iron +EPDMGear BoxDuctile Iron as A536 65-45-12
WormDuctile Iron as A536 65-45-12Hand WheelDuctile iron as A536, 65-45-12




Spec    Code
InchDND/mmABHL1L
2"5060.392606013681G102060
2-1/2"6573106696013697G102073
 6576.1106696013697G102076
3"8088.9112806013697G102089
4"100114.31309560136116G102114
 125139.715211160136148G102140
5"125141.315211160136148G102141
 150165.116512560136148G102165
6"150168.316512560136148G102168
 200216.319515780190133G102216
8"200219.119515780190133G102219
