OS&Y Gate Valve with Flange End DIN PN16

1.Product Introduction
The 300PSI Rising Stem Resilient-Seated(OS&Y) Gate Valve is designed to be the main control valve in an automatic fire sprinkler system.The gate valve features a EN 1092-2 flange, flat face end connection for easy installation and accessibility. Outside screw and yoke (OS&Y) gate valves are recommended when positive shutoff and a quick visual indicator of open/closed position is required. This valve features a pre-grooved stem for tamper switch mounting.

2.Product Feature And Application
Meet or exceed EN1171
Full Waterway
Adjustable Packing
Ductile Iron Wedge,EPDM Encapsulated
Face to Face Dimensions to EN 1171
Flange Drilling to EN 1092-2
FM Approved 300PSI Rating
Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard.

3.Main Parts
BodyDuctile iron as A536, 65-45-12BonnetDuctile iron as A536, 65-45-12
Resilient wedge discDuctile iron as A536, 65-45-12 + EPDMStemSS304 / SS316 / SS420 / SS431
YokeDuctile iron as A536, 65-45-12Hand wheelDuctile iron as A536, 65-45-12

222 拷贝.png

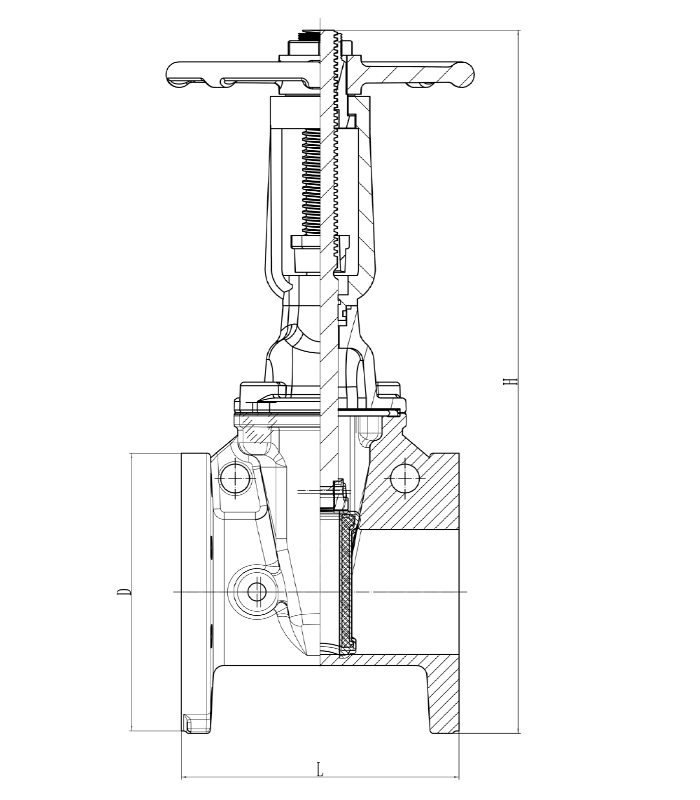

InchDNPsiLH minH maxD
2503001504204821654 x 3/4"


2 1/2653001704355051854 x 3/4"E002065
3803001805005842004 x 3/4"E002080
41003001905806872208 x 3/4"E002100
61503002107709312858 x 7/8"E002150
820030023093011363408 x 7/8"E002200
102503002501125138340512 x 1"E002250
123003002701295160446012 x 1"E002300
