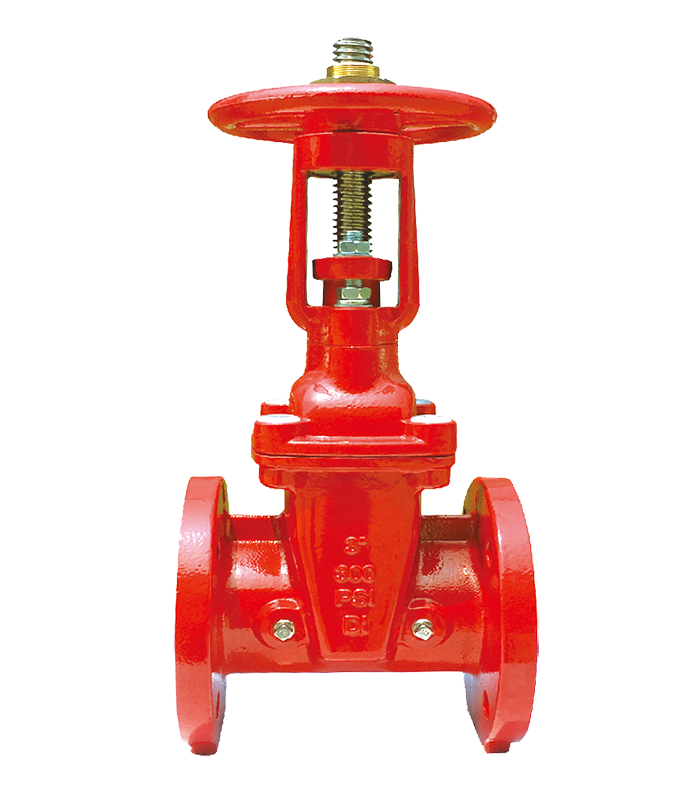

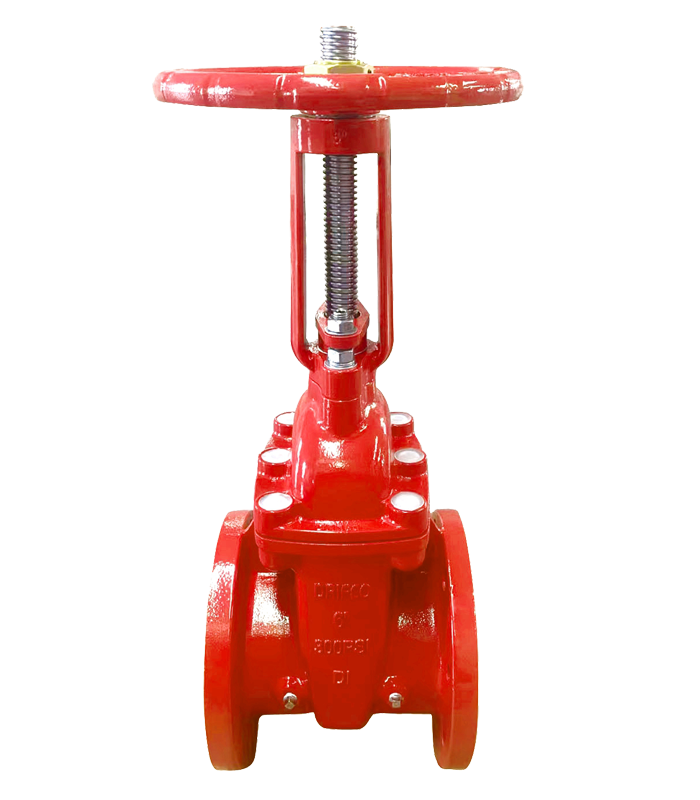

OS&Y Gate Valve with Flange End BS PN16


1.Product Introduction
The 300PSI Rising Stem Resilient-Seated(OS&Y) Gate Valve is designed to be the main control valve in an automatic fire sprinkler system.The gate valve features a EN 1092-2 flange, flat face end connection for easy installation and accessibility. Outside screw and yoke (OS&Y) gate valves are recommended when positive shutoff and a quick visual indicator of open/closed position is required. This valve features a pre-grooved stem for tamper switch mounting.

2.Product Feature And Application
Full Waterway
Adjustable Packing
Ductile Iron Wedge,EPDM Encapsulated
Face to Face Dimensions to BS 5163
Flange Drilling to EN 1092-2
FM Approved 300PSI Rating
Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard.

3.Main Parts
BodyDuctile iron as A536, 65-45-12BonnetDuctile iron as A536, 65-45-12
Resilient wedge discDuctile iron as A536, 65-45-12 + EPDMStemSS304 / SS316 / SS420 / SS431
YokeDuctile iron as A536, 65-45-12Hand wheelDuctile iron as A536, 65-45-12

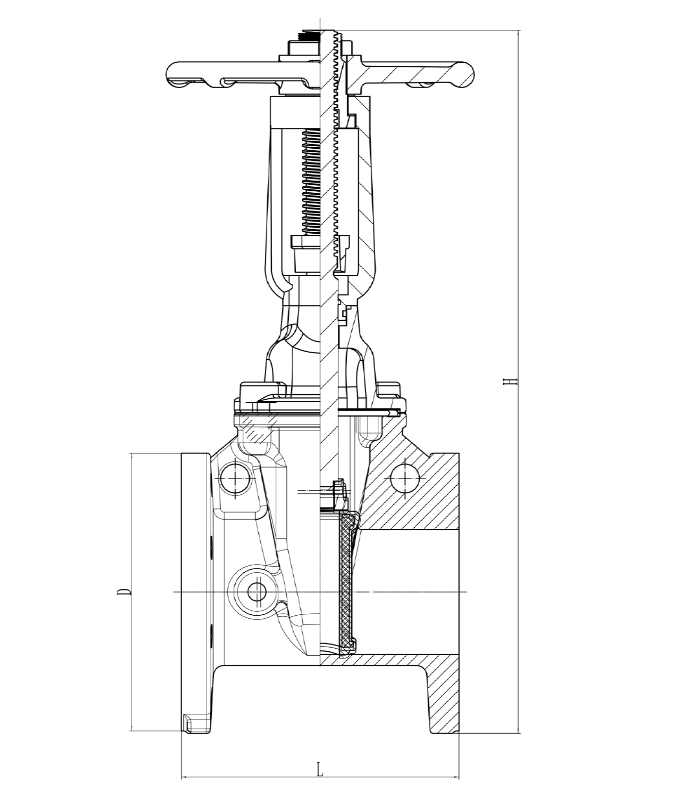

222 拷贝.png


SpecPressureSizeBoltsCode
InchDNPsiLH minH maxD
2503001784204821654 x 3/4"F301050
2 1/2653001904355051854 x 3/4"F301065
3803002035005842004 x 3/4"F301080
41003002295806872208 x 3/4"F301100
61503002677709312858 x 7/8"F301150
820030029293011363408 x 7/8"F301200
102503003301125138340512 x 1"F301250
123003003561295160446012 x 1"F301300
